• Pixel Pitch: 1.25mm

  • Brightness: 600 cd/m²

  • Wireless Data Transfer and Cable-less Power Docking

  • AI-powered Image Processor

  • Real-time ConnectedCare Service

Technical Specifications:
Name
E-mail
Message

Send request

photo to Vivid Color Expression Powered by HDR
Photo about Intelligent Image Processor
Photopicture to  Care Less with Sturdy Design
Photo to Easy Remote Control Support
Photo to Optimum Cable-less Design
photo about  Stronger Light and Shadow

OPTICAL PARAMETER

Pixel Pitch (mm)

1.25

Module Dimensions (W x H, mm)

300 x 112.5

No. of Modules per Cabinet (W × H)

6 (2 × 3)

Cabinet Dimensions (W × H × D, mm)

600 x 337.5 x 44.9

Weight per Cabinet (kg/cabinet)

6.9

Physical Pixel Density (pixels/m²)

640,000

Cabinet Material



Die-cast Aluminum

Xindeco

LTD

STANDART

OPERATING CONDITIONS

Model

CSAB-012X

CONTROLLER

PHYSICAL CHARACTERISTICS

CERTIFICATION

SOFTWARE COMPATIBILITY

SuperSign CMS

Yes

ACCESSORIES

Pixel Configuration

4 in 1 Package

Module Resolution (W x H)

240 x 90

Weight per Module (g)

200

Cabinet Resolution (W × H)

480 x 270

Cabinet Surface Area (m²)

0.203

Weight per Square Meter (kg/m²)

34.1

Flatness of Cabinet (mm)

± 0.5

Service Access

Front and Rear (Module : Front Only)

LSAA012
Photo to Optimum Cable-less Design
Photo to 4-in-1 LED Package
Photo to Standby Mode

* Non-Contact Connectors: Near-field wireless connectors that use RF(Radio Frequency) to transmit and receive data between two devices.

1

2

LG LED Bloc

Logo Red Dot Design Award 2020
Logo IDEA Bronze Design Award 2020

Winner of Design Awards: Red Dot Design Award 2020 and IDEA Design Award 2020

True Innovation Behind Simplicity



With unrivaled picture quality and optimum cable-less design,

Expand the Possibilities of Business Space Itself

Photo to EMC Class B Certified

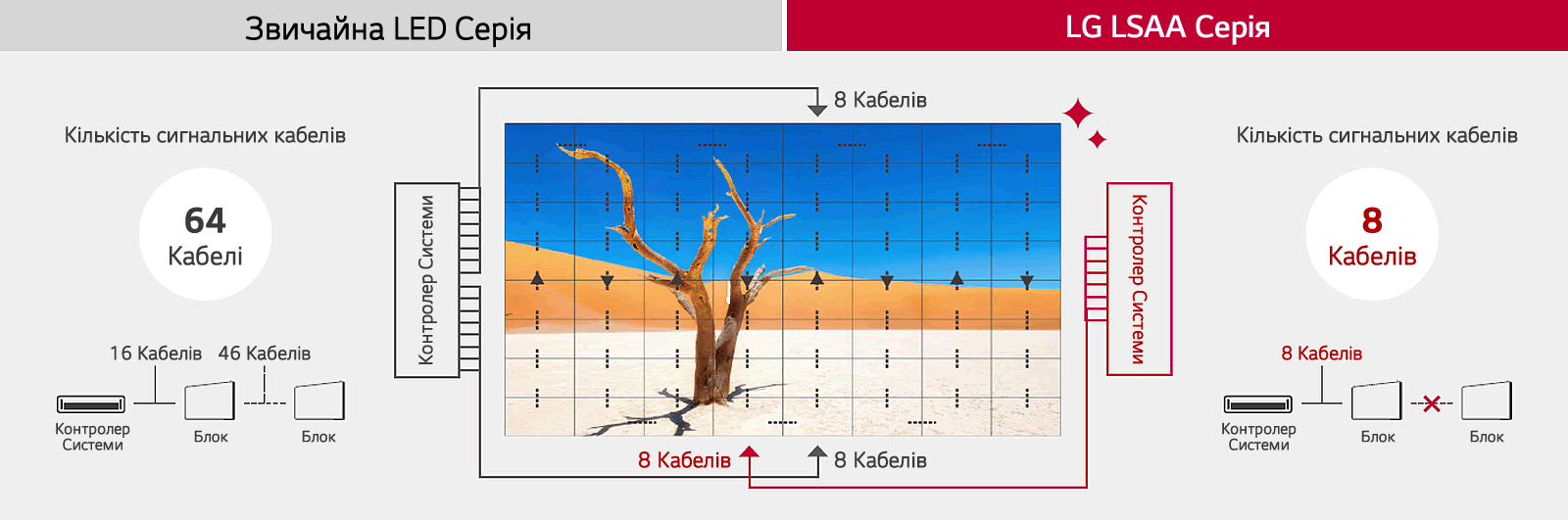

Why “Optimum Cable-less” LED



The LSAA series is the innovative LED signage applying the wireless transmission technology with *non-contact connectors. For up to UHD resolution with the 16:9 ratio, it does not require a cable connection between the cabinets to supply signal & power. Its block assembly design makes the LSAA series easier to be installed than ever before.rsion.

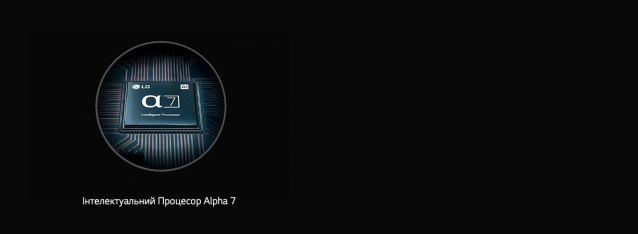

Intelligent Image Processor



The Alpha 7 Intelligent Processor which is adopted from LG’s TV technology recognizes and analyzes the original content, optimizing the clarity and sharpness of the content for itself.

Vivid Color Expression Powered by HDR



With HDR (HDR10, HDR10 Pro*) support, content becomes vivid with great visual impact. The wider color spectrum and greater contrast ratio allow viewers to fully enjoy lively content.

* HDR10 Pro is LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping.

* The above functions are created by using deep learning AI technology to improve the picture quality.

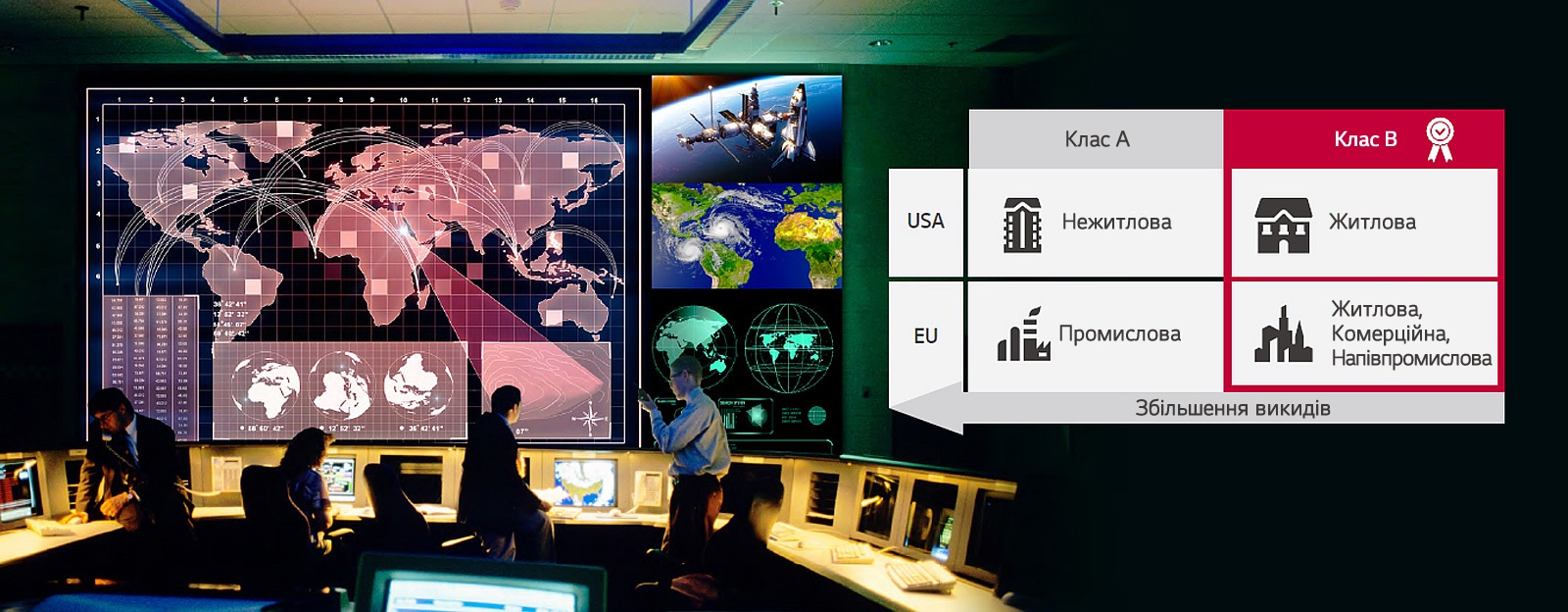

EMC Class B Certified



The LG LSAA Series is certified as EMC (Electromagnetic compatibility) Class B, which requires electronic equipment made for use in residential environments as well as commercial, industrial, or business environments. Therefore, it is suitable for up-close uses such as corporate meeting rooms, board rooms, etc.

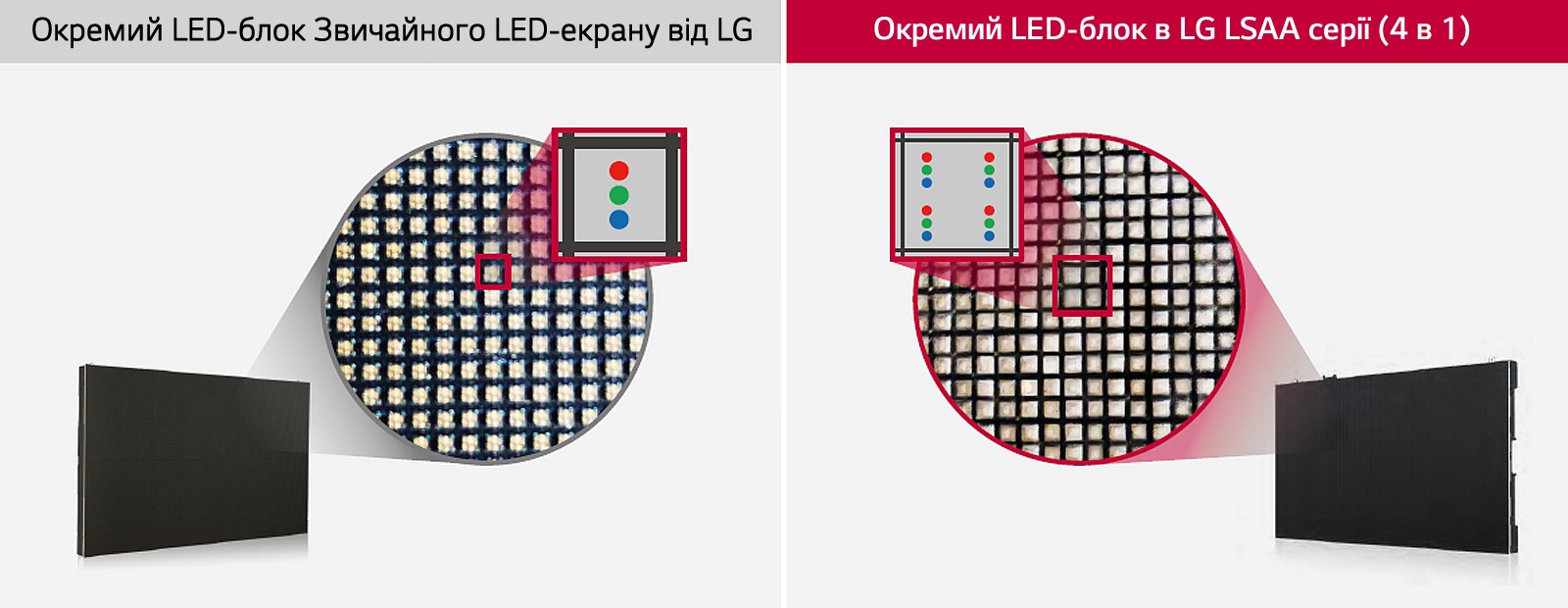

4-in-1 LED Package



Unlike LG's conventional LED signage in which one light source constitutes one small LED package, the LSAA series has applied four light sources at once to its wider LED package. So the attached area of 4-in-1 LED package can be wider than the conventional single LED package, making the LED signage surface smoother and suitable for up-close uses such as corporate meeting rooms etc.

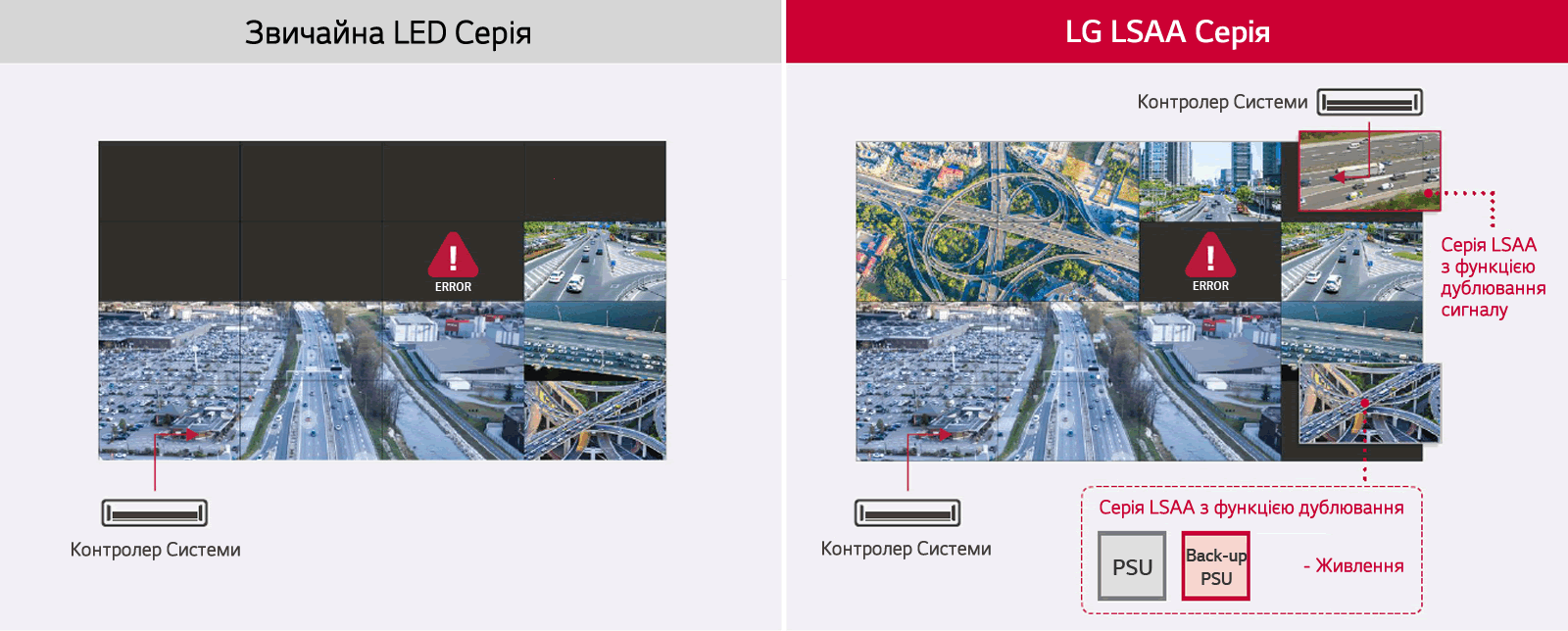

Power/Signal Redundancy Support



The LSAA series is designed to support redundancy of signal and power, providing users with comfort. With optional embedded back-up power supply unit and signal redundancy, customers can assure the continuous operation of the screen without power failure, while the dual controllers minimize screen failure with a bi-directional signal input.

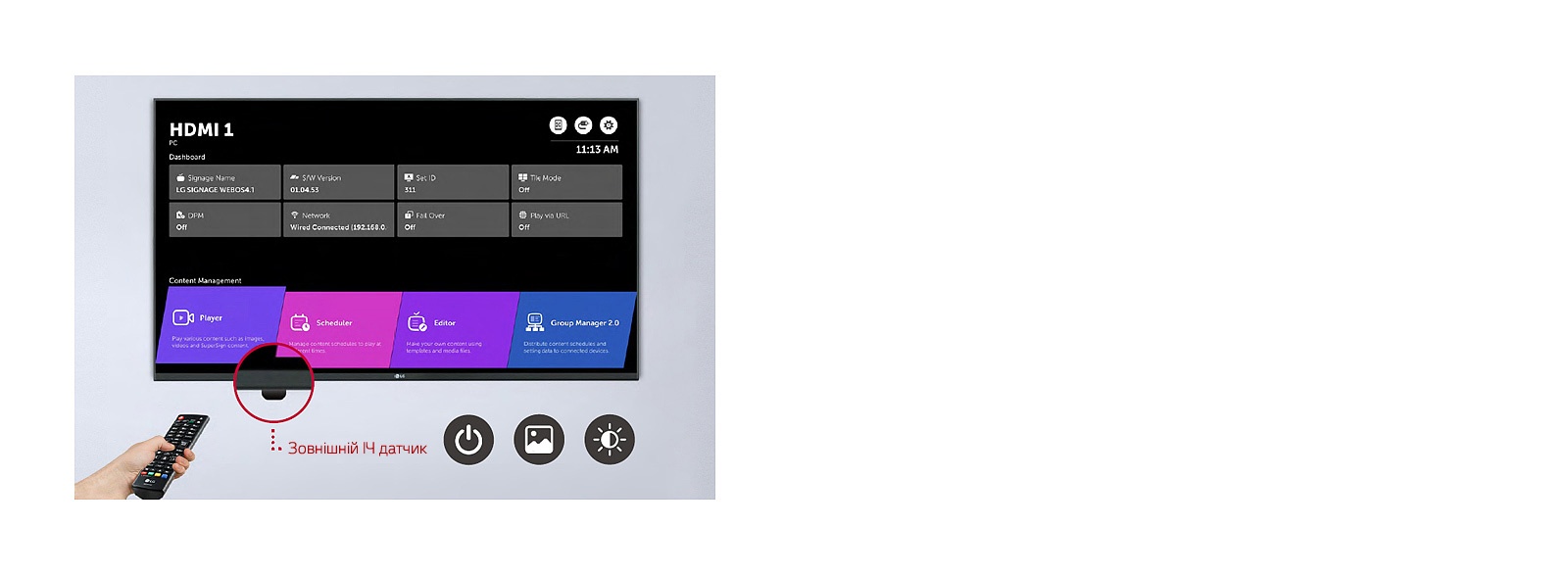

Easy Remote Control Support*





The LSAA series allows users to easily access the settings, such as Picture Mode, volume, etc. by using a remote control instead of connecting to a PC. It uses the same UI as general LG digital signage, so users can easily adapt to it.

* Available for over 1,280 × 720 resolution screen



Compatibility with AV Control System



The LSAA series has been certified Crestron Connected® for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

* Network-based control

Real-time ConnectedCare Service



Maintenance is easy and fast with the optional ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

* ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

Min. Brightness (After Calibration)

1,200 nit (Peak.) /

600 nit (Max.)

Visual Viewing Angle (H×V)

160° × 140°

Color Uniformity

±0.015 Cx, Cy

Processing Depth (bit)

20

Color Temperature

6,500 K / 2,800 ~ 10,000 K (Adjustable by LED Assistant on PC)

Brightness Uniformity

≥97 %

Contrast Ratio (10 lux)

Peak. 8,000:1/ Typ. 4,000:1

HDR Compatibility

HDR10, HDR10 Pro*

ELECTRICAL PARAMETER

Driver-IC Type

Common Cathode

Power Consumption (W/cabinet, avg.)

64

Power Consumption (BTU/h/cabinet, Max.)

364

Power Consumption (BTU*/h/m², Max.)

1,798

Frame Rate (Hz)

50 / 60

Power Consumption (W/cabinet, max.)

107

Power Consumption (W/m², Max.)

527

Power Consumption (BTU/h/cabinet, avg.)

218

Power Supply (V)

100 - 240

Refresh Rate (Hz)

3,840

* BTU - British Thermal Unit — the amount of heat required to heat 1 eng. pounds of water at 1° F

1


Lifetime (Hours to Half Brightness)

100,000

Operating Humidity

10 — 80 %

Operating Temperature

0°C - +40°C

IP Rating (Front / Rear)

IP50 / IP20

Safety

60950-1, BS476 Part 7 Class 1

1


EMC Standart

Class A

Standart RoHS

Yes

Option

Wall Mount Kit, Frame Kit

1

LED Assistant

Yes

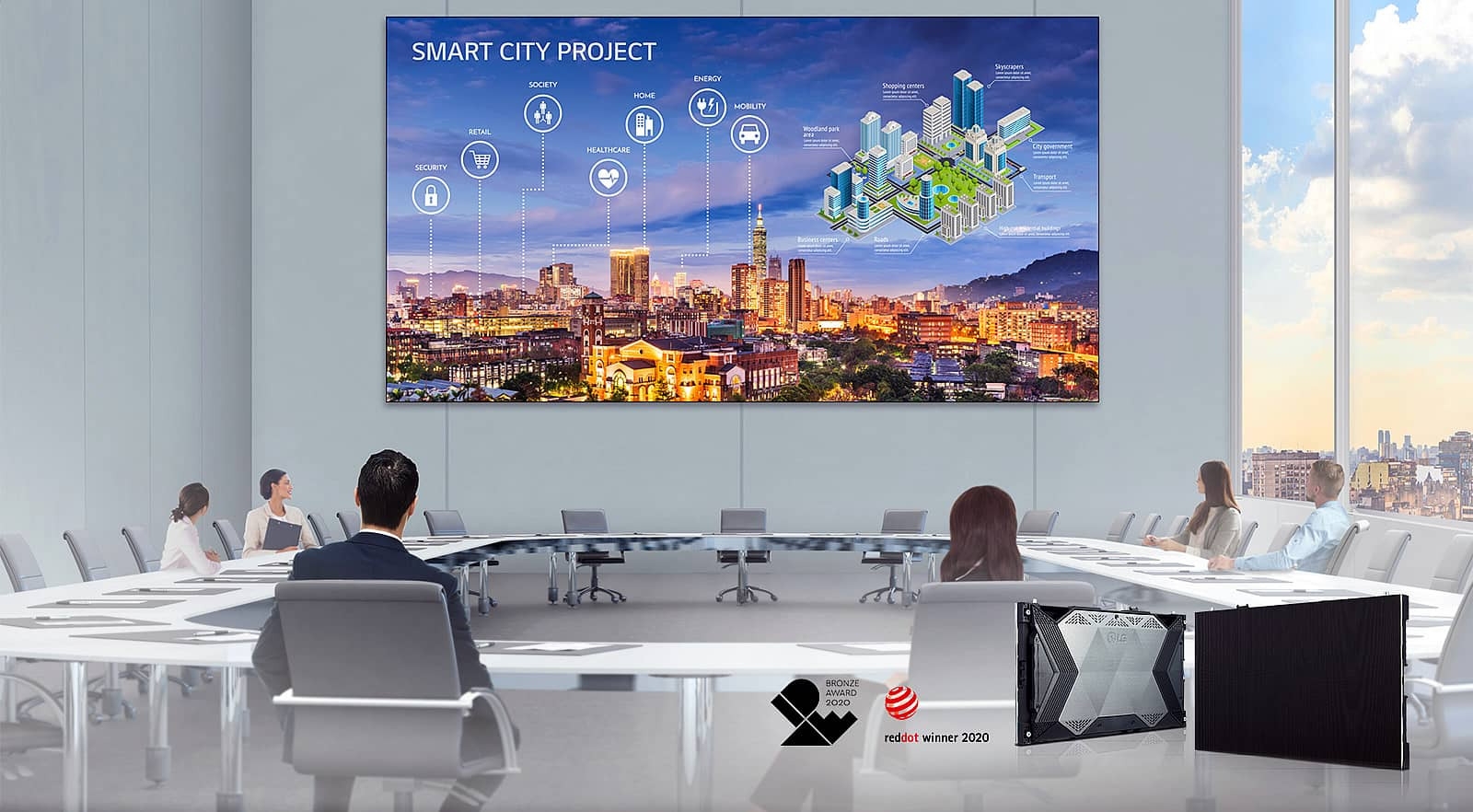

Main collage about LG LSAA012 LED Bloc

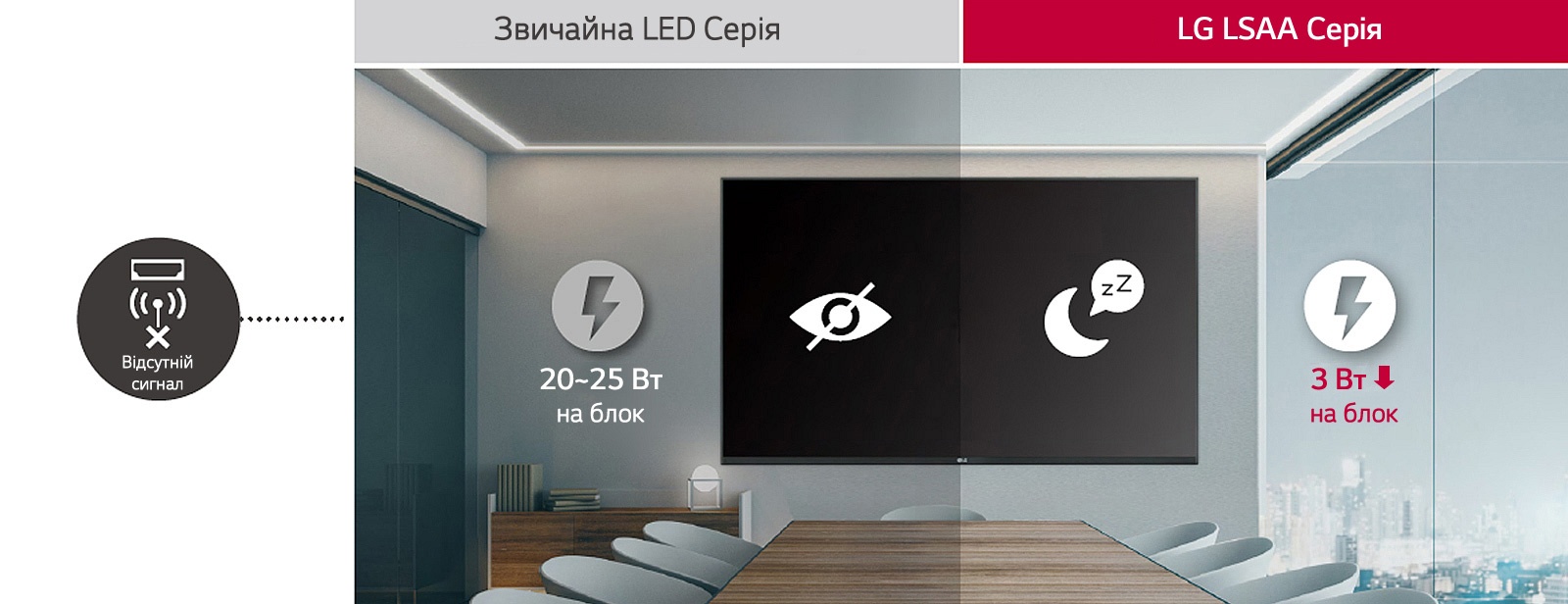

Standby Mode



When there is no input signal for a period of time, the screen turns off and the main circuit parts inside the LED cabinet go to a standby mode. This saves additional power consumption and enables the product to be reactivated simply by using a remote control.

Photo to Power/Signal Redundancy Support

* The power/signal redundancy models are optional.

* HDR10 Pro is LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping.
